Chord Sender

Chord Sender is a device which follows pitch information in a Live clip to send root note a scale/ chord information to ScaleBots. If the Remote button on the ScaleBot is switched on, the scales it uses will follow those being broadcast by chord sender. At the moment, only one instance of chord sender is required per Live Set.

To automate the chord sender, open up a clip in the same slot as the module. Then enter notes of pitch between C3 and B3 to set the root note (C-B). Then enter notes in the octaves above to control the choice of chord/ scale.

• Root Note

Root note for current scale/ chord. This can be automated using MIDI notes C3 – B3 (60 -71)

• Scale Display

Pitch Set: Notes in current scale from C to B – display only.

• Scale Menu

This shows the group of scales available to chord sender. This can be automated by setting notes C4-B5 (numbers 0 -23 in menu).

• Chord Menu

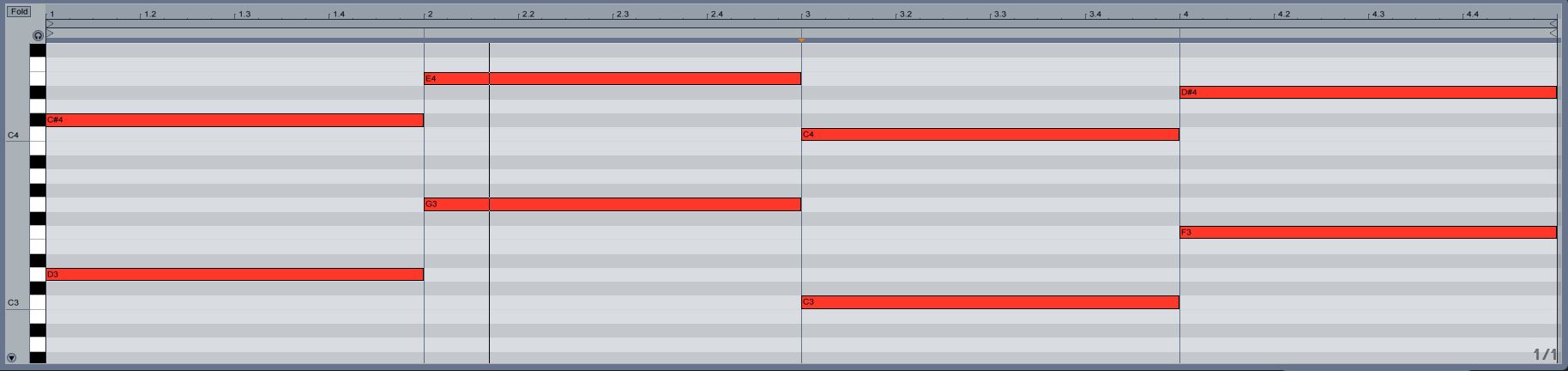

Scale-tone chord. A chord that corresponds to this scale. It may not be the only one. This can be automated by setting notes C4-B5 (numbers 0 -23 in menu). Here’s an example:

This represents a II-V-I-IV sequence in C major, so the chords are D minor 7 (D Dorian scale), G 7 (G Mixolydian), C major 7 (C Ionian) and F major 7#4 (F Locrian).

The pitches used to trigger the various scale/ chords are shown in the table below.

C4 Ionian M7
C#4 Dorian -7
D4 Phrygian -7b9
D#4 Lydian M7#4
E4 Mixolydian 7
F4 Aeolian -7b13
F#4 Locrian -7b5
G4 Melodic Minor 7
G#4 Dorian b2 -7b9
A4 Lydian Augmented -7
A#4 Lydian b7 7#11
B4 Aeolian Major 7b13
C5 Locrian natural 2nd -7b5
C#5 Super Locrian -7b5
D5 Harmonic Minor -M7b13
D#5 Locrian natural 6th -7b5
E5 Ionian Augmented -7
F5 Dorian #4 -7#11
F#5 Phrygian Major 7
G5 Lydian #9 M7
G#5 Altered Dominant bb7 dim7
A5 Symetrical Diminished dim7
A#5 Symetrical Diminished (dominant) 7#9
B5 Whole Tone +


Altering the scale menu changes the Chord Menu and vice versa. For nwdlbots, chords and scales are two aspects of the same thing!

I usually put chord sender in slot zero next to Noodle Control without an instrument in the slot. Music made by these clips can sound decidedly weird.
